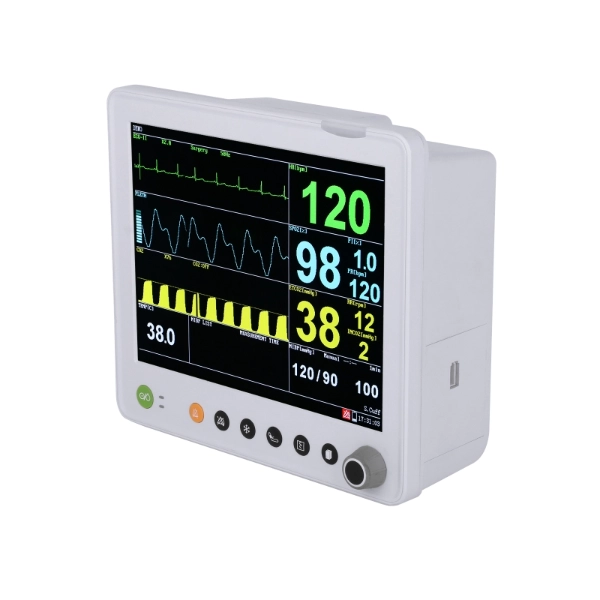

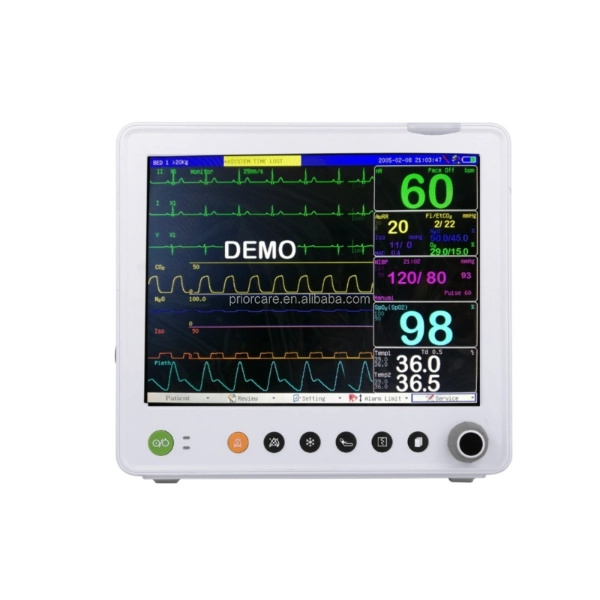

12 inch multi parameter patient monitor CA600, real time monitoring patients' ECG, NIBP, SPO2, HR, Temp, Respiration. Optional: ETCO2, IBP.
| ECG | |||||
| No of leads | 3 lead | ||||
| Lead View | Selectable I, II or III | ||||
| Gain Selection | x1/4, X1/2, x1, and x2 | ||||
| Frequency Response | Diagnostic: 0.05 to 90 Hz | Diagnostic: 0.05 to 90 Hz | Monitor: 0.5 to 35 Hz | Surgery: 1 – 15Hz | Strong: 5 to 15 Hz |
| Defibrillator Protection | Yes | ||||
| Electrosurgery Protection | Yes | ||||
| Pacer Detection/Rejection | Yes | ||||
| Pulse Oximetry | |||||
| Range | 1% to 99% | ||||
| Resolution | 0.01 | ||||
| Accuracy | 70% to 99% range: ±2% | ||||
| 50% to 69% range: undefined | |||||
| Method | Dual wavelength LED | ||||
| NlBP | |||||
| Technique | Oscillometric during inflation | ||||
| Range | 40-250mmHg | ||||
| Measurement Cycle | < 40 sec. | ||||
| Automatic Measurement Cycles (Selectable) |
2,3, 5, 10,15, 30 min; 1, 2, 4 hr | ||||
| STAT Mode | 5 minutes of continuous readings | ||||
| Max. Allowable Cuff Pressure | 300 mmHg | ||||
| Resolution | 1 mmHg | ||||
| Transducer Accuracy | ±2 mmHg or±2% of reading | ||||
| Heart (Pulse) Rate | |||||
| Source | User selectable: Smart, ECG, Pleth, NIBP | ||||
| Range | 20 to 300 bpm (30 to 240 bpm NIBP) | ||||
| Accuracy | ±1 bpm or ± 1% (ECG) whichever is greater 2 bpm or ±2% (NIBP) whichever is greater | ||||
| Temperature | |||||
| Range, Accuracy | 20℃ to 45℃, ±0.1℃ | ||||
| Display Resolution | ±0.1℃ | ||||
| Probe | Probe 2.252K | ||||
| ETCO2 (optional) | |||||
| Units | mmHg; kPa; % | ||||
| Method | Non-dispersive infrared; auto calibrating | ||||
| N2O Compensation | Manual; On/Off, user selectable | ||||
| Range | 0 to 114 mmHg; 0 to 15% | ||||
| Flow, Sample Rate | Sidestream; 50 ml/min | ||||
| Accuracy | ±2 mmHg or 5% of reading | ||||
| Respiration Rate | |||||
| Rate | 3-120 bpm | ||||
| Resolution | 1 breath/min | ||||
| Accuracy | ±2 breath/min | ||||
| Trends | |||||
| Memory | 30 Groups NIBP List | ||||
| Display | Tabular, graphical | ||||
| Interface & Display | |||||
| Keys | 9. membrane activated | ||||
| Rotary Knob | Push and rotate; 24 steps/turn | ||||
| Screen | 12.1 inch active color TFT | ||||
| Resolution | Internal Display: 800 x 600 | ||||
| Waveforms | 9, maximum | ||||
| Waveform Types | ECG Lead l, ll, lll, CO2; Pleth | ||||
| Sweep Speed | 6.25,12.5, 25, or 50 mm/sec | ||||
| Languages | English, Chinese | ||||
| Power | |||||
| Voltage | 100-240V AC | ||||
| Power Consumption | 35 W, typical | ||||
| Battery | 1 sealed lithium battery | ||||
| Battery working time | 3 hours, typical | ||||
| Recharge Time | 4.5 hours, typical | ||||
12.1″ color TFT LCD screen with multi-channel waveform display
Rechargeable high-energy built-in Li battery
Easy to learn, easy to use -simplified menus and dedicated function keys
Easy connecting with central monitoring system
96 hours data storage
Suitable for adult, pediatrics, neonates, and various types of veterinarians
Monitors end-tidal CO2 and inspired CO2 accurately at high respiration rates
Gas monitoring with cutting-edge water filter tube
Accurate SpO2 measuring on low perfusion
