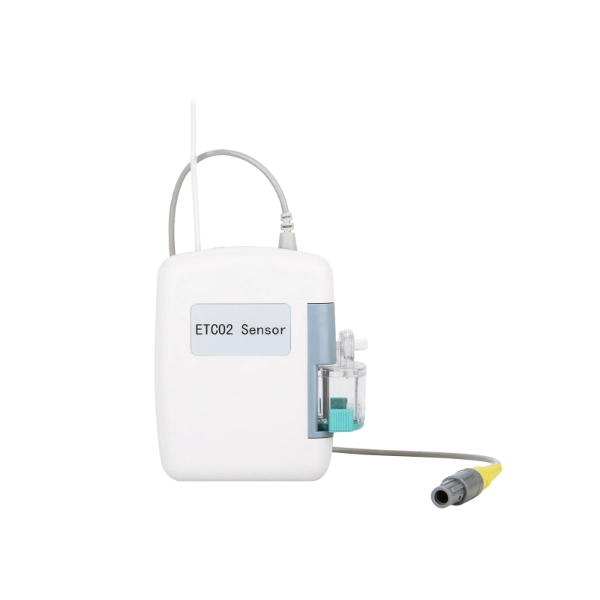

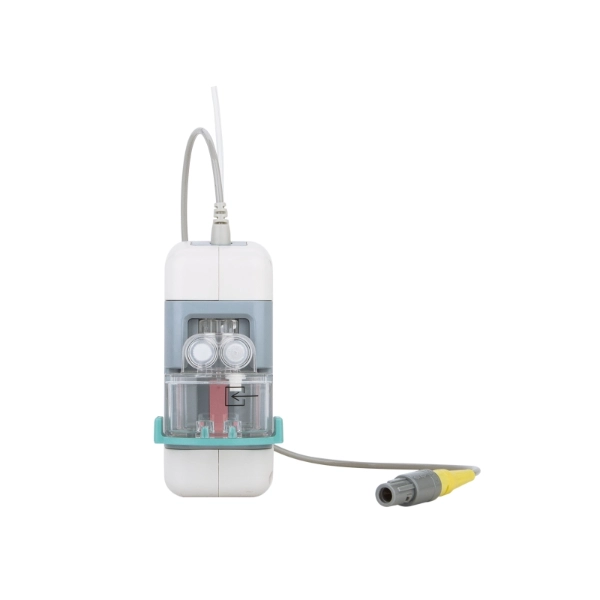

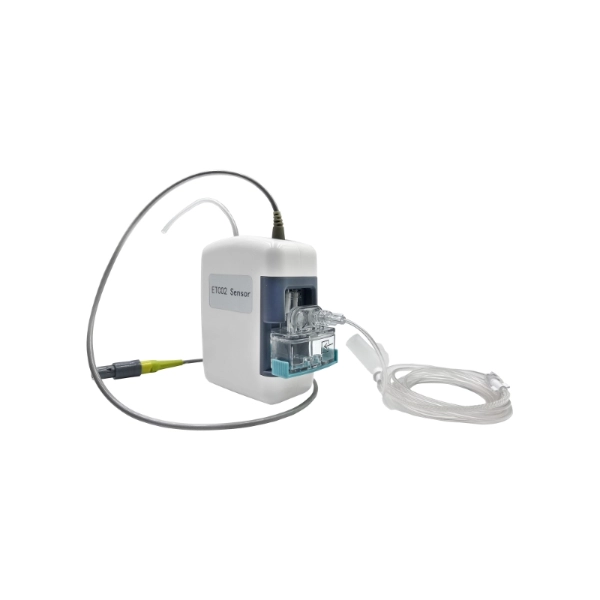

LH810 is an economic cost sidestream end tidal CO2 sensor, with built in air pump extract ETCO2 and analyze, accurate and durable, Suitable for intubated and nasal tube patients, more flexible on application environments. Compatible with muiti patient monitor brands.
| Principle | NDIR |
| CO2 Measuring range | 0-150mmHg |
| 0 – 19.7 % | |
| 0 – 20 kPa | |
| Accuracy | 0-40mmHg @ ±2% of reading, 41-70mmHg @ ±5% of reading, 71-100mmHg @ ±8% of reading, 101-150mmHg @ ±10% of reading. |
| Respiration | 3 – 150 BPM; Accuracy: ±1 BPM |
| Voltage & Power | 5.0VDC ±5%, 600mA (Sensor Average Power Consumption Less than 1.2W) |
| Interface | RS232, TTL (customized) |
| Temp & Humidity | Operating: 0º to 40°, 10 to 90% RH, |
| Storage: -40º to 70ºC, <90% RH |
Compatible Brands:
 |
 |
|
 |
| Philips | Nihon Kohden | Mindray | Biolight |
 |
 |
 |
 |
| Bionet, Edan,Yonker,Infinium,DRE, Axia Surgical | Contec | Comen | Masimo |
Suitable for intubated and non-intubated patients.
Plug and play, long service life
No calibration required
Barometer pressure: CO2, N2O, HE compensation for accutrate measurement
Monitoring the patient’s real time ETCO2, respiration rate and inspired CO2
Checking and confirm ET tube placement
Detecting ventilator airway connection
Fully compatible with respironics moudule’s protocol
