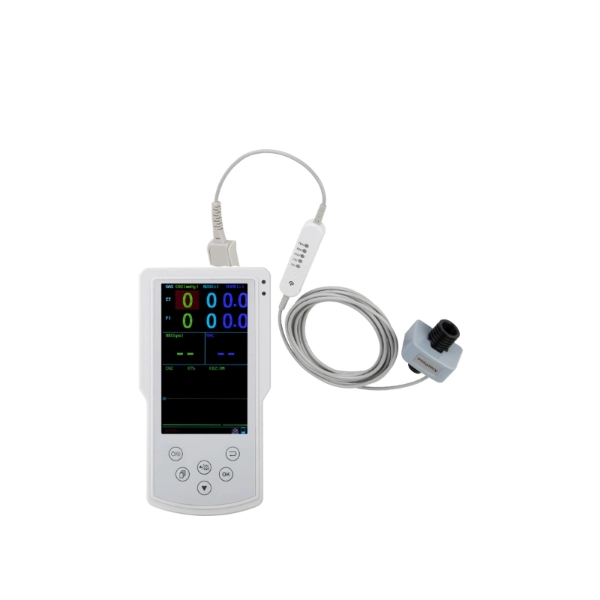

Handheld monitor with 5 inch display, monitoring ETCO2 and anesthesia gas (N2O, ENF, HAL, SEV, DES, ISO) concentration, high accuracy, with built-in rechargeable battery, suitable for clinical and emergency circumstance.
| Measuring Range | ETCO2 | N2O | ISO, ENF, HAL | DES | SEV | Respiratory Rate |
| 0 – 10% / 10-15% | 0 – 100% | 0 – 6% | 0 – 18% | 0 – 6% | 3 – 150 BPM | |
| Measuring Accuracy | ±0.2vol %+2% of reading / 0.3vol %+2% of reading | 2vol %+2% of reading | 0.2vol %+2% of reading | 0.2vol %+2% of reading | 0.2vol %+2% of reading | ±1 breath |
| Adapter Input | AC 220V | |||||
| Adapter Output | DC 12V, 2A | |||||
| Battery | Chargeable Lithium Battery, last for 10 hours, Charge time: 4 Hours | |||||
| Temp & Humidity | Operating: 0º to 40°, 10 to 90% RH, non-condensing | |||||
| Storage: -40º to 70ºC, <90% RH, non-condensing | ||||||

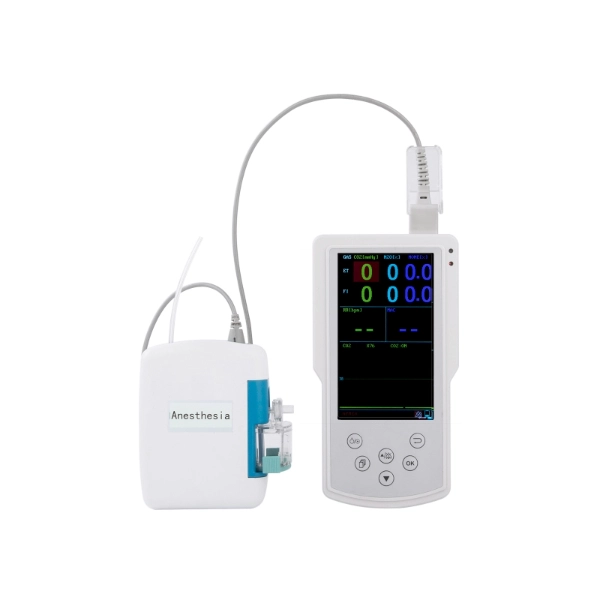

| Optional anesthesia sensor module | MG-1000: Sidestream anesthesia sensor AG100 | |||||
| MG-1000B: Mainstream anesthesia sensor AG200 | ||||||

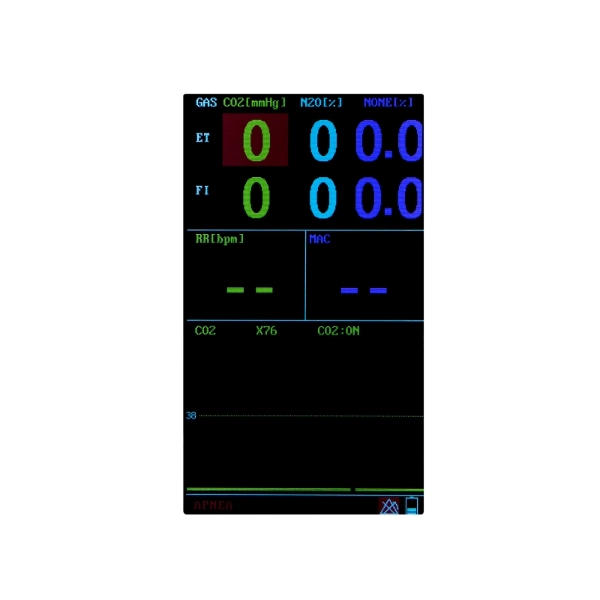

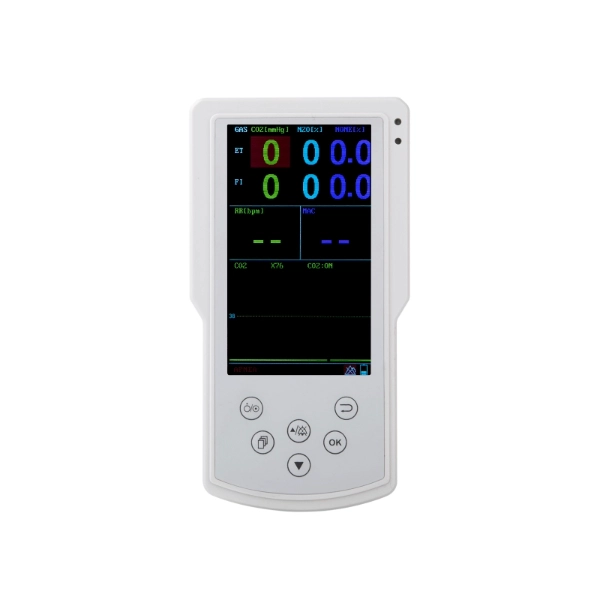

5 Inch TFT Display with 480*272 resolution,
Built-in stand multi angle observation.
Automatic temperature and pressure compensation.
Self developed Data Analysis Software for Multi Gas Monitoring
Rechargeable high capacity built-in Li Battery, continuously working for over 8 hours.
Suitable for adults, pediatrics and neonates in a range of clinical environments including the OR, ICU, Ambulance, and Transportation.
